1/14 745D Hydraulic 6x6 Articulated Truck- RTR

Store / Construction Equipment / Dump Trucks
$2 800.00
Colour
In stock
Product Details

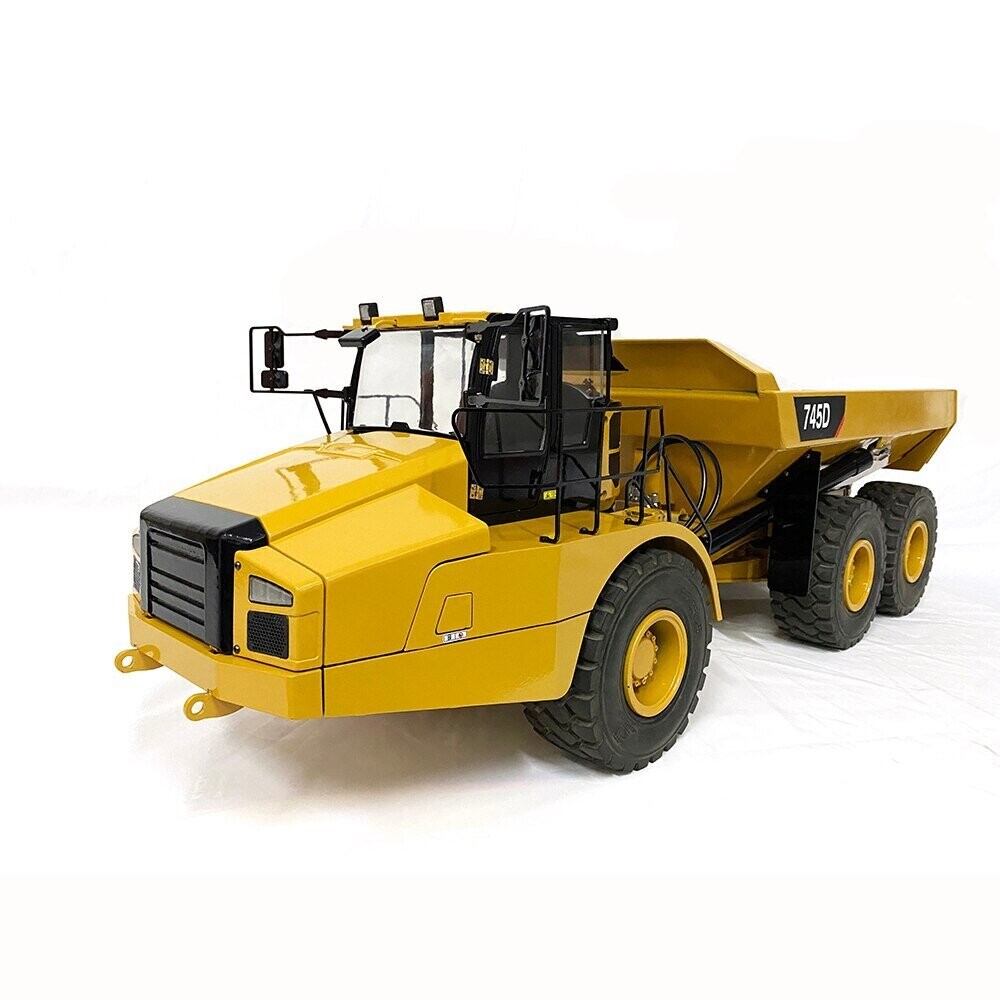

1/14 Hydraulic Articulated Truck 745D 6x6 Remote Control Truck Liquid Metal Pressure Model
Carter 745D articulated truck model product manual
Truck is equipped with electronic equipment and hydraulic system with remote control
Body material made from steel plate
137mm rubber tires
Hydraulic pump: 5055 or 5065 brushless motor + Italian pump head (factory 3.5mpa)
Hydraulic valve: two-way valve with neutral return
Hydraulic cylinder: stainless steel and brass
Body size: L838*W279*H284mm (transportation dimensions)
Width of the outer edge of the rear-view mirror: 279MM
Maximum driving force 20KG
Theoretical maximum lifting force 20KG
Main performance parameters
Steering form: articulated hydraulic steering
Minimum ground clearance of chassis 45 (mm)
Hydraulic pump: flow 1.2L/MIN, rated pressure 3.5MPA (the hydraulic system uses No. 46 hydraulic oil by default)
Reversing valve: 2-way centre oil return reversing valve
Transmission system: brushed two-speed gearbox + metal lockless axle.
Walking ESC: 60A brushed ESC
Main pump ESC: 60A brushless ESC
Paint: using car paint
Remote control: FS-I6S, using 4 AA batteries
Batteries need to be purchased separately
Host power supply voltage: 12V, using 3S lithium battery 5200MHA (length 140MM wide 45MM high 40MM size), XT60 connector.
Excluded:
  • Oil
  • Battery
  • Battery charger
  • Sound module
  • Interior decoration
